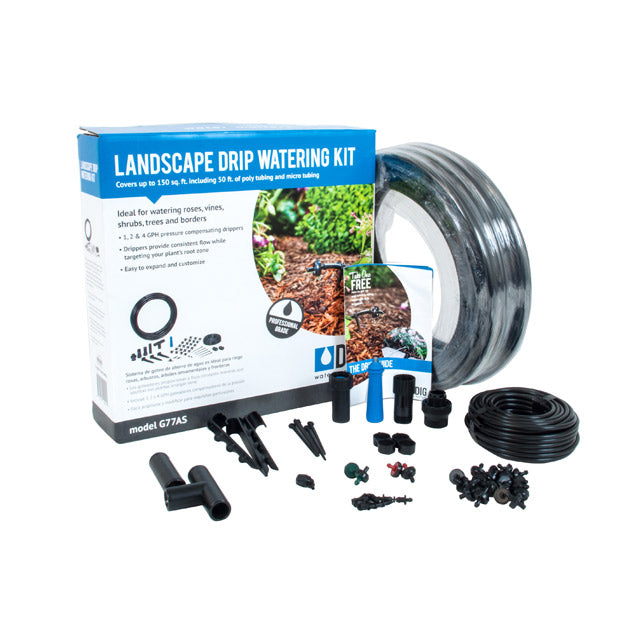

Perfect for first time user, the DIG G77AS Drip Irrigation Kit is a complete kit for irrigating groundcovers, shrubs, trees, flowers, roses, vegetable gardens and vines. The kit has all the parts needed to start a system from a faucet or a garden hose, and covers up to 150 sq. ft. This kit easily expands with DIG’s complete line of drip products to cover a larger area of up to 400 sq. ft. as more plants are added using additional drip tubing and PC drip emitters with the same flow rate. The kit includes a 3/4″ backflow preventer, 3/4″ 25 PSI pressure regulator, 3/4″ swivel adapter, 50′ of our premium 1/2″ drip tubing with .600 ID x .700 OD, 50′ of 1/4″ micro tubing, PC drip emitters with twenty 1-GPH, two .5-GPH, two 2-GPH and two 4-GPH PC drip emitters, and all the necessary parts needed to complete the installation.
Features
- Use to water roses, shrubs, groundcover, flowerbeds and trees; ideal for hillsides
- Complete kit; covers up to 150 sq ft (can be easily expanded up to 400 sq ft)
- Contains 26 PC button drip emitters with 20 1-GPH, two .5-GPH, two 2-GPH and two 4-GPH drip emitters
- Applies water at a very low application rate leading to less surface evaporation from leaves and soil
- Offers flexibility in irrigation frequency and application rate, minimizing surface compacting and runoff
- Designed for new and existing landscapes including difficult terrain, such as slopes and oddly shaped areas

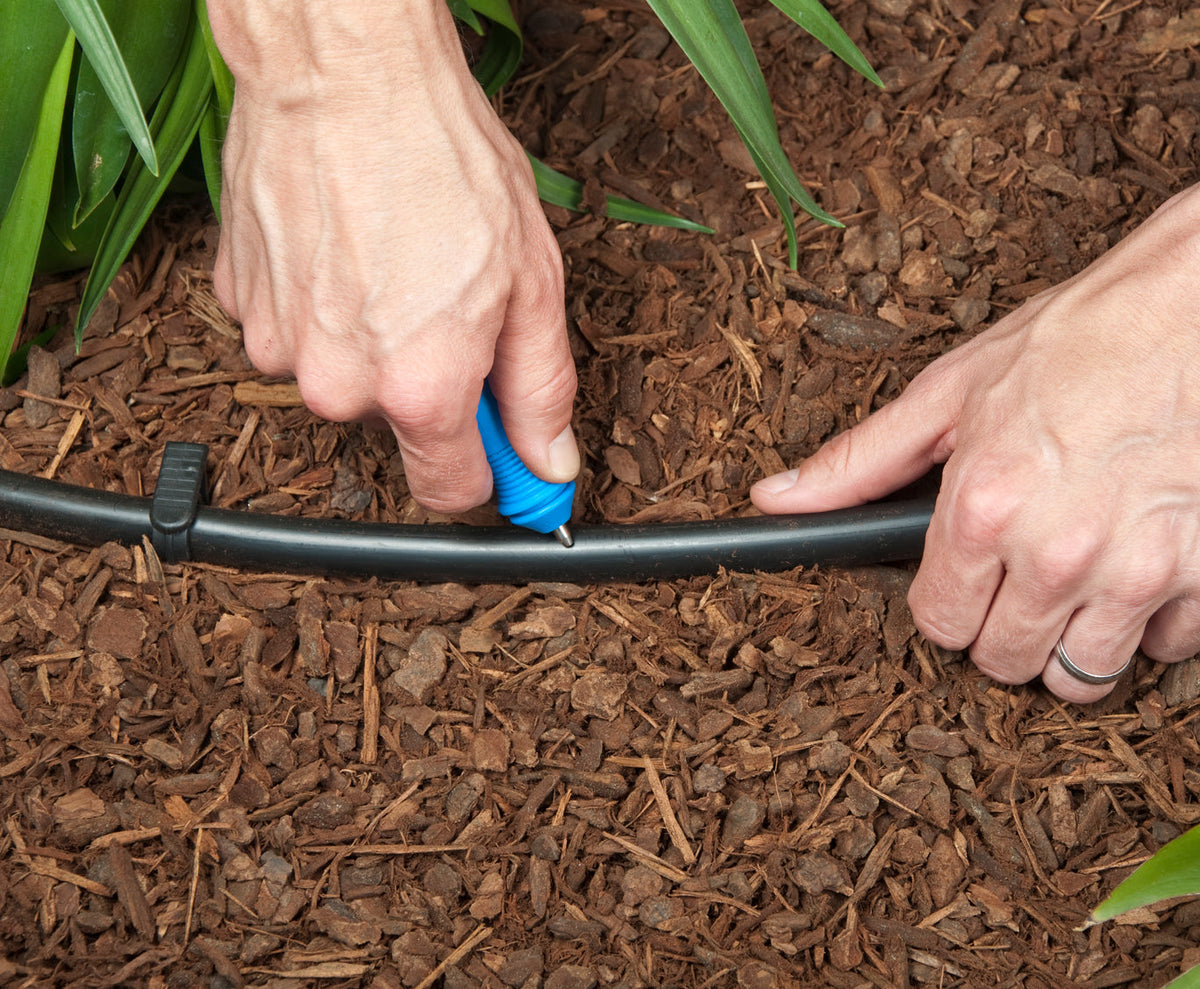

- No special tools or glue are needed
- Saves money by significantly lowering the cost of system components compared to conventional irrigation systems
- DIG’s drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)
Technical
| MODEL |
DESCRIPTION |
| G77AS |
Drip Irrigation Kit |
Specifications
- Maximum incoming operating pressure: 100 PSI
- Operating pressure: 10 to 45 PSI (25 PSI pressure regulator included)
- PC drip emitter flow rates: .5, 1, 2 and 4 gallons per hour (GPH)
- Flow rates and color codes:
- .5 GPH (2 L/H) color code – brown
- 1 GPH (4 L/H) color code – black
- 2 GPH (8 L/H) color code – green
- 4 GPH (12 L/H) color code – red

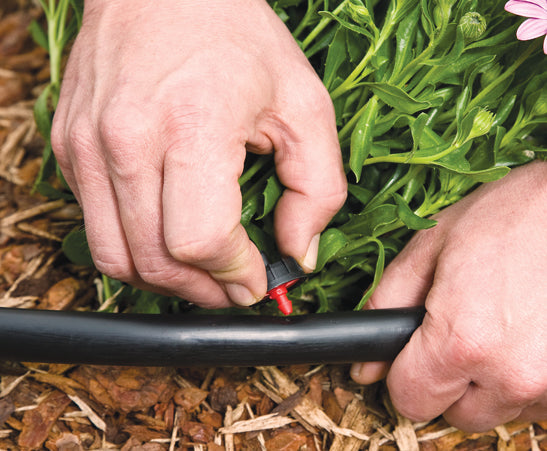

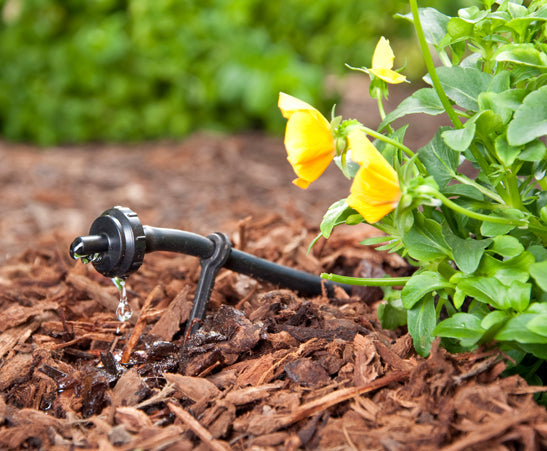

- Drip emitters inlet size: 1/4" barb *Drip emitters outlet side: nipple
- Maximum recommended flow rate: 220 GPH (3.7 GPM)

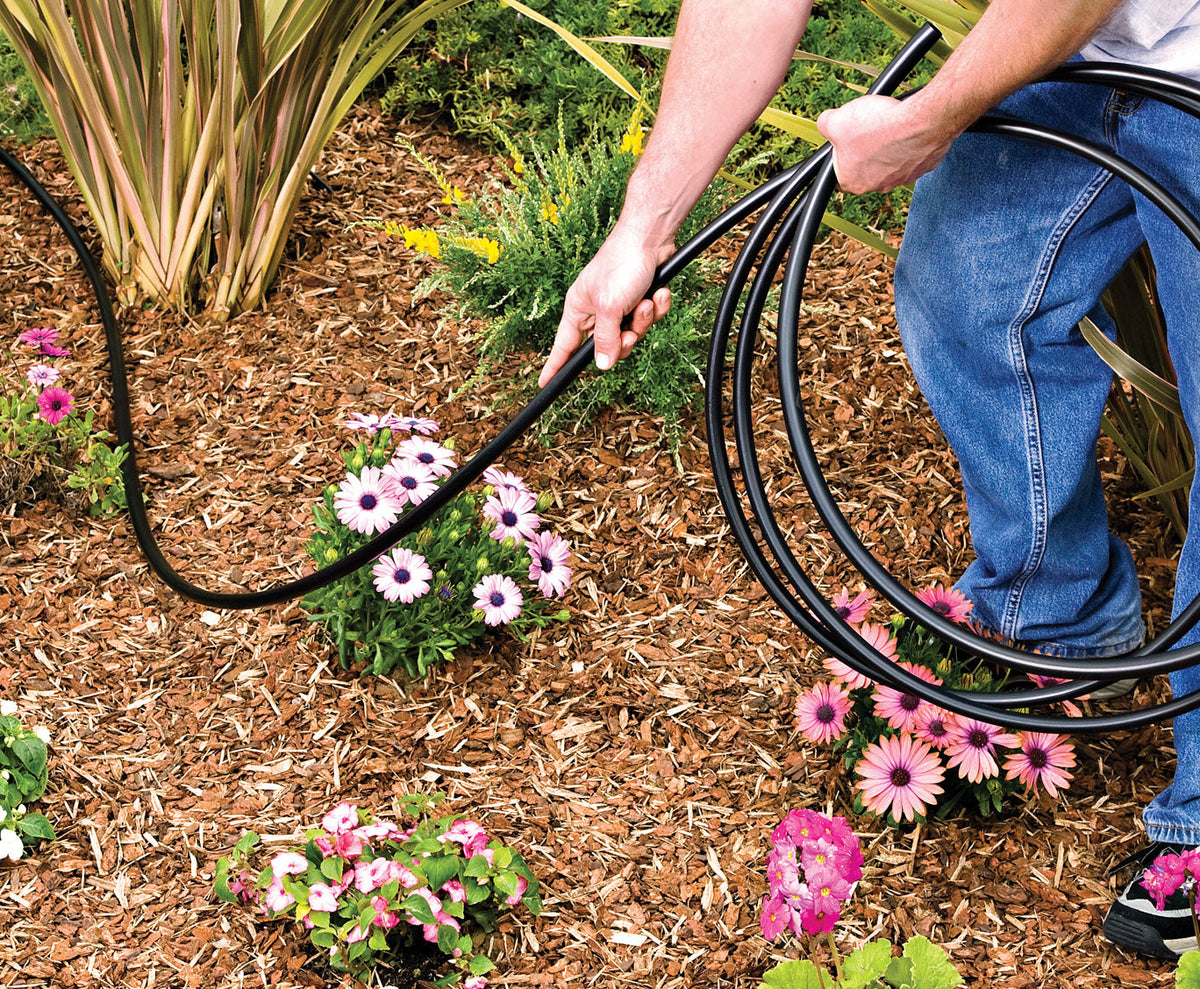

- Poly tubing length & size: 50' x 1/2" with .600 ID x .700 OD
- Micro tubing length & size: 50' x 1/4"
- 3/4" FHT x MHT pressure regulator: downstream pressure preset to 25 PSI
- Total flow rate for this kit: 32 GPH (.53 GPM)
